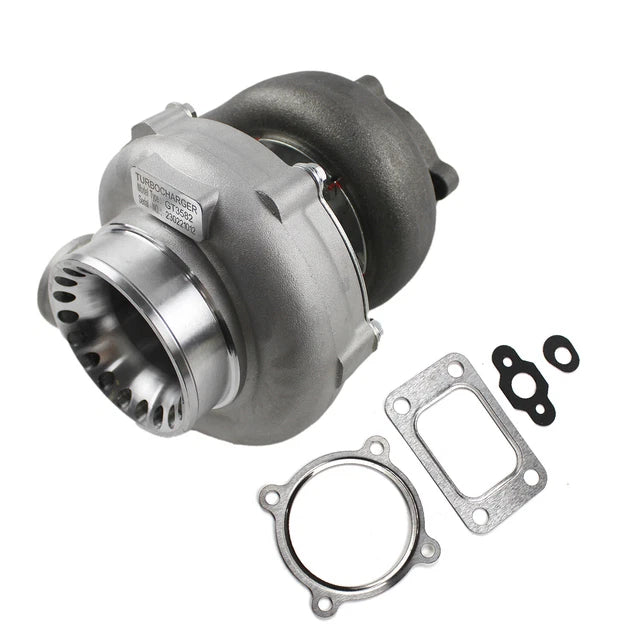

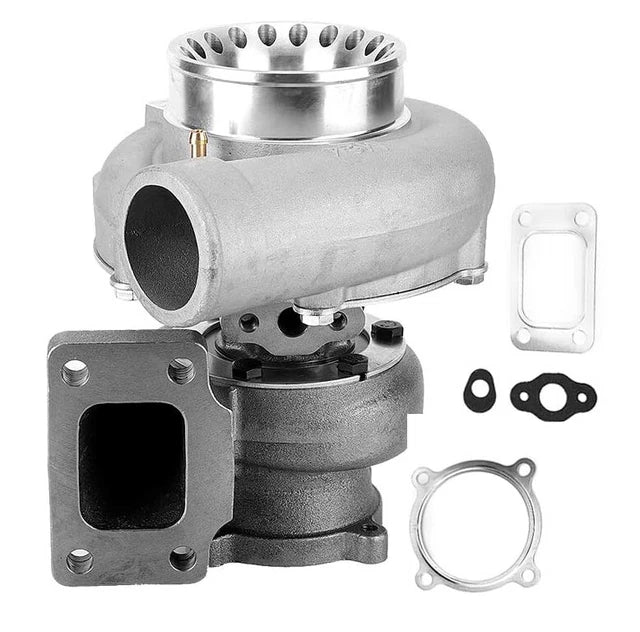

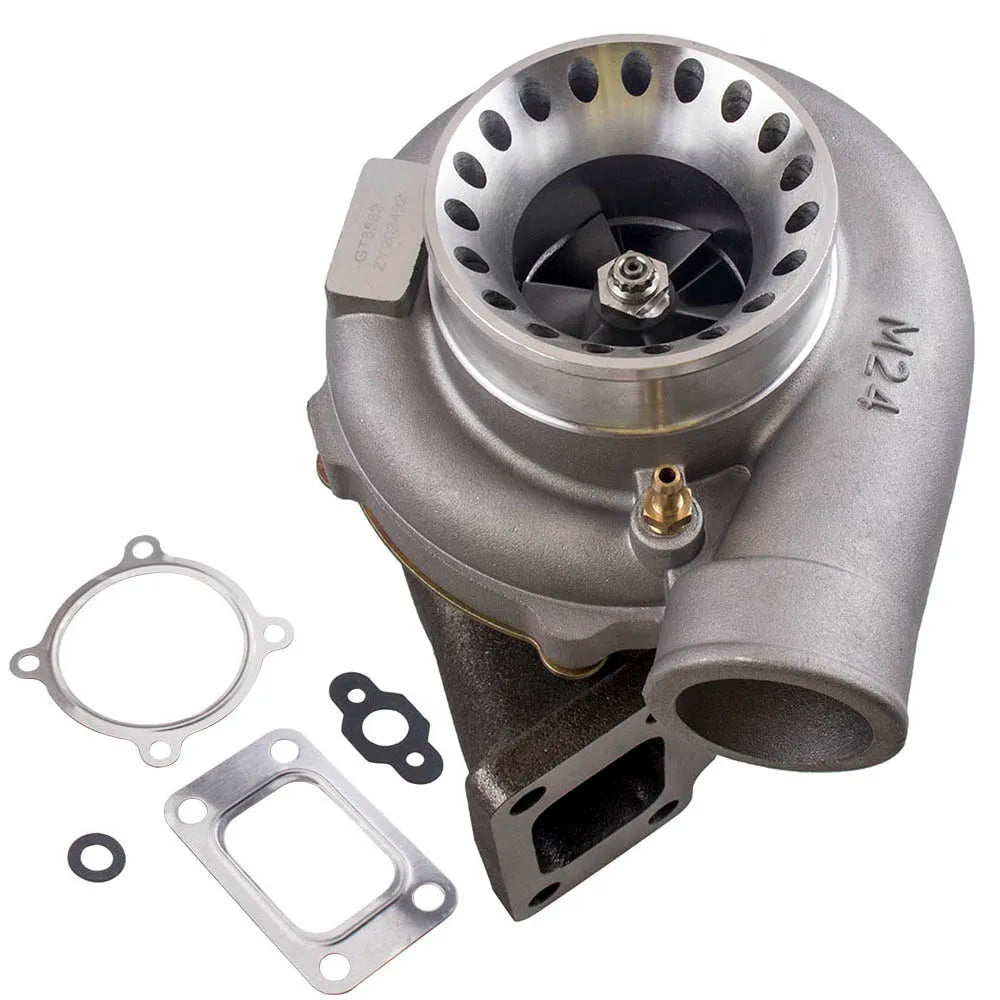

GT35 GT3582 Turbo Charger with Gaskets - T3 AR.70/63 - 600HP Universal

Universal GT35 GT3582 turbocharger with gasket kit. Capable of supporting up to 600HP on 4 and 6 cylinder engines from 2.5L to 6.0L. Popular for Honda K20 / H22 / F22 and Ford 4.6 / 5.0 builds.

Specifications

• Compressor A/R: 0.70 - Turbine A/R: 0.63
• Exhaust inlet flange: T3 - Exhaust outlet: 4-bolt
• Compressor inducer: 61.5mm / exducer: 81.5mm
• Compressor inlet: 4 in (anti-surge) / outlet: 2.5 in
• Turbine inducer: 68mm / exducer: 62.4mm
• Bearing type: journal (floating) bearing, 270-degree thrust
• Cooling: water + oil cooled
• Oil feed inlet: M10 x 7/16-24 - Oil drain: 2 x M8 x 1.25
• Water inlet/outlet: M14 x 1.5
• Max boost: 22 PSI
• Wastegate: external (not included)

Includes

• 1 x Turbocharger
• 2 x Flange gaskets
• 2 x Oil feed/drain gaskets

Note: Universal fitment - confirm clearance in your engine bay before ordering. Proper oil supply and pressure are critical for turbo life. Professional installation recommended.
